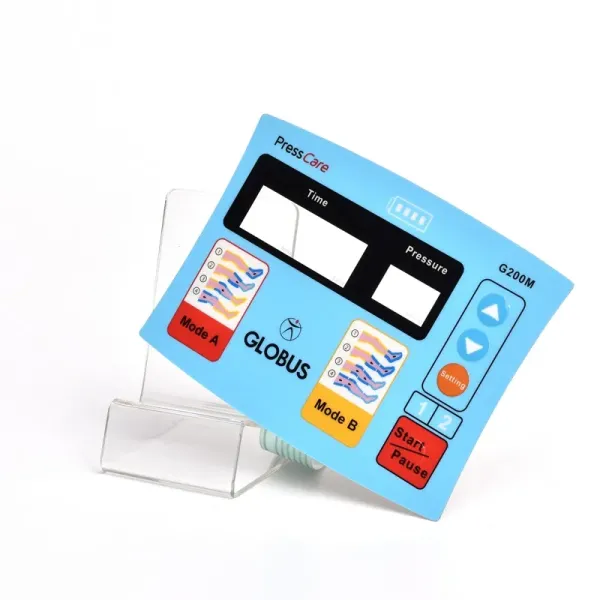

Double-Sided Flexible Printing Membrane Printed FPC Circuit

MOQ : 100

Model NO. : HC-FPC-002

Combination Mode : Adhesive Flexible Plate

Conductive Adhesive : Conductive Silver Paste

Flame Retardant : HB

Processing Technology : Electrolytic Foil

Base Material : Aluminum

Insulation Materials : Organic Resin

Average Thickness : 1.1-0. Am

Copper Foil Type : Electrolytic and Rolled

Copper Foil Thickness : 1oz, 1/2oz, 1/3oz

Substrate Film Thickness : 1mil, 1/2mil

Cover Film Thickness : 1mil, 1/2mil

Stiffener Thickness : 3mil to 9mil

Production Capacity : 100,000PCS/Month

HS Code : 8536500000

Contact Now

Double-Sided Flexible Printing Membrane Printed FPC Circuit

Double-sided flexible printed circuit (FPC) boards offer exceptional flexibility and reliability for advanced electronic applications requiring compact, lightweight solutions.

Key Features and Benefits

Exceptional Flexibility: Can be bent, folded, and deformed freely with small coil radius and movement along X, Y, Z axes
Space-Saving Design: Light and thin construction (average thickness 1.1-0.1mm) maximizes use of narrow instrument spaces
Lightweight Construction: Optimized for current load rather than mechanical strength, resulting in minimal weight
Superior Sealing Capability: Designed for low-tensile seal performance in adverse environments
Stable Signal Transmission: Freely designed wiring patterns and conductor distances ensure steady RLC parameters
Easy Assembly: Excellent terminal properties for soldering, inserting, riveting, and gluing applications
Enhanced Insulation: Materials like polyimide and polyester provide superior insulation properties

Material Composition

Copper Foil Substrate:

Copper Foil: Electrolytic copper and rolled copper (common thickness: 1oz, 1/2oz, 1/3oz)
Substrate Film: Common thickness of 1mil and 1/2mil
Adhesive: Thickness customized to customer requirements

Cover Film Protection:

Cover Film: Surface insulation (common thickness: 1mil and 1/2mil)
Adhesive: Thickness customized to customer requirements
Prevents adhesive buildup and foreign matter before pressing

Stiffener (PI Stiffener Film):

Reinforces mechanical strength for surface mounting
Common thickness: 3mil to 9mil
Adhesive: Thickness customized to customer requirements

EMI Shielding: Electromagnetic shielding film protects circuit board lines from external interference in high electromagnetic environments.

Competitive Advantages

Shorter Assembly Time: Complete line configuration eliminates extra PCB wiring connection work
Compact Size: Small volume PCB effectively reduces product dimensions
Lightweight: Significantly lighter than traditional rigid PCBs
Thin Profile: Thinner than hard PCB boards, improving flexibility and 3D assembly capabilities
Quick Delivery
Premium Services
OEM/ODM Customization Available

Application Images

Double-Sided Flexible Printing Membrane Printed FPC Circuit

Product Tags:

double-sided FPC circuit membrane

flexible printing membrane switch

printed FPC circuit switch

Double-Sided Flexible Printing Membrane Printed FPC Circuit Images
